Underground wheel loader XD928 rated load 2.0ton with 1cbm bucket capacity

Product Categories

Wheel Loader [23]
Skid Steer Loader [13]
Backhoe Loader [11]
Underground mining machine [15]
Excavator [24]
Truck Crane [24]
Bulldozer [7]
Forklift [10]
Motor Grader [2]
Agricultural tractors & Equipment [15]
Road Roller [8]
Crawler/Tracked Transporter [2]

Shandong Katop Machinery Co.,Ltd.

Contact Now

Underground wheel loader XD928 rated load 2.0ton with 1cbm bucket capacity

Name: Underground wheel loader XD928 rated load 20ton with 1cbm bucket capacity
Brand: KATOP
Price: 1 USD

Brand Name : KATOP

Model Number : XD928

Certification : CE SGS ISO9001

Place of Origin : Shandong

MOQ : 1 unit

Supply Ability : 300units per month

Delivery Time : within 20 days

Packaging Details : 20GP container

bucket capacity : 0.8cbm/1.0cbm

rated load : 2.0ton

engine : YTO4105T/CUMMINS 4BTA3.9

engine power : 70/75kw

dimension : 5500*1800*1900mm

tire : 15/70-18

grade ability : 30%

optional : side seat;side dump ;narrow tire ;tire chains

Contact Now

XD928 underground wheel loader

Underground wheel loader XD928 rated load 2.0ton with 1cbm bucket capacity

●YTO LR4A3Z-22 turbo engine, YJ280 type torque converter and ZL20 gearbox, ZL25 heavier type driving axles, ratio decreased, traction increased 20%, more powerful and work more efficiently.

● Air over hydraulic brake, 15/70-18 tyre,automatic leveling function.

● Strengthed frame, more robust, tires have high adhesion.

● Bucket motherboard with wear-resistant 400 steel plate made by Wugang, very durable;

● Overall length ≤5.2 meters, the whole width ≤1.8 meters, Overall height ≤1.9 meters, more narrower, lower and shorter, suitable for ultra-low, ultra-narrow aisle works.

● Standard with exhaust purification device (optional imported three way catalytic converter; optional wet brake axle)

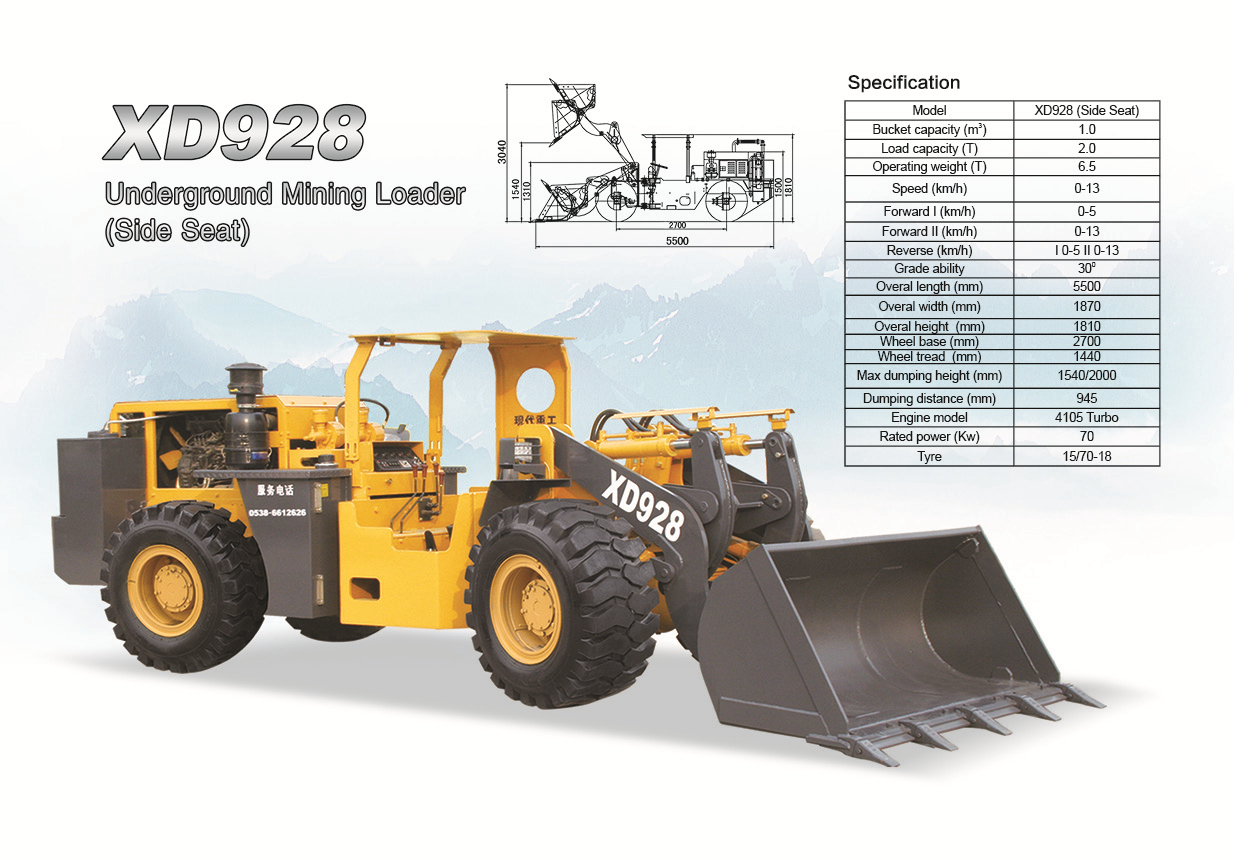

Specification

Bucket capactity ()	1.0
Rated load (T)	2.0
Weight (T)	7.0
Speed (km/h)	0-13
Forward gear (km/h)	I 0-5 II 0-13
Reverse gear (km/h)	I 0-5 II 0-13
Length (mm)	5500
Width (mm)	1800
Height (mm)	1900
Wheel base (mm)	2450
Wheel tread (mm)	1420
Max.dumping height (mm)	1540
Dumping distance (mm)	945
Engine model	YTO LR4A3Z-22
Rated power (Kw)	70
Tyre type	15/70-18

Underground wheel loader XD928 rated load 2.0ton with 1cbm bucket capacity

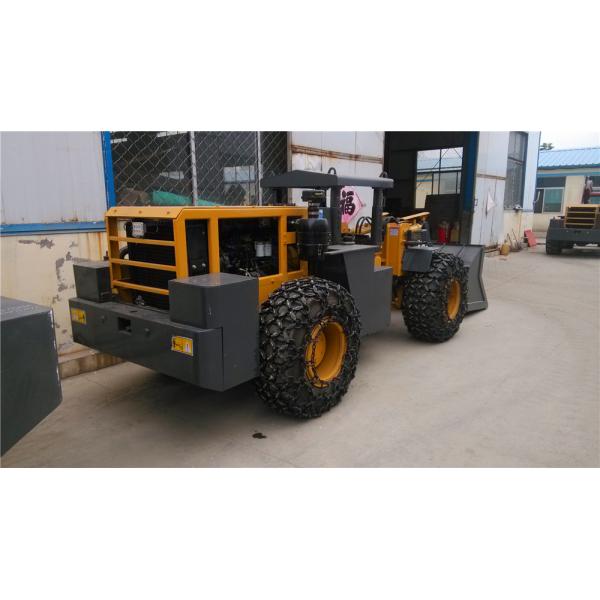

Underground wheel loader XD928 rated load 2.0ton with 1cbm bucket capacity Images
