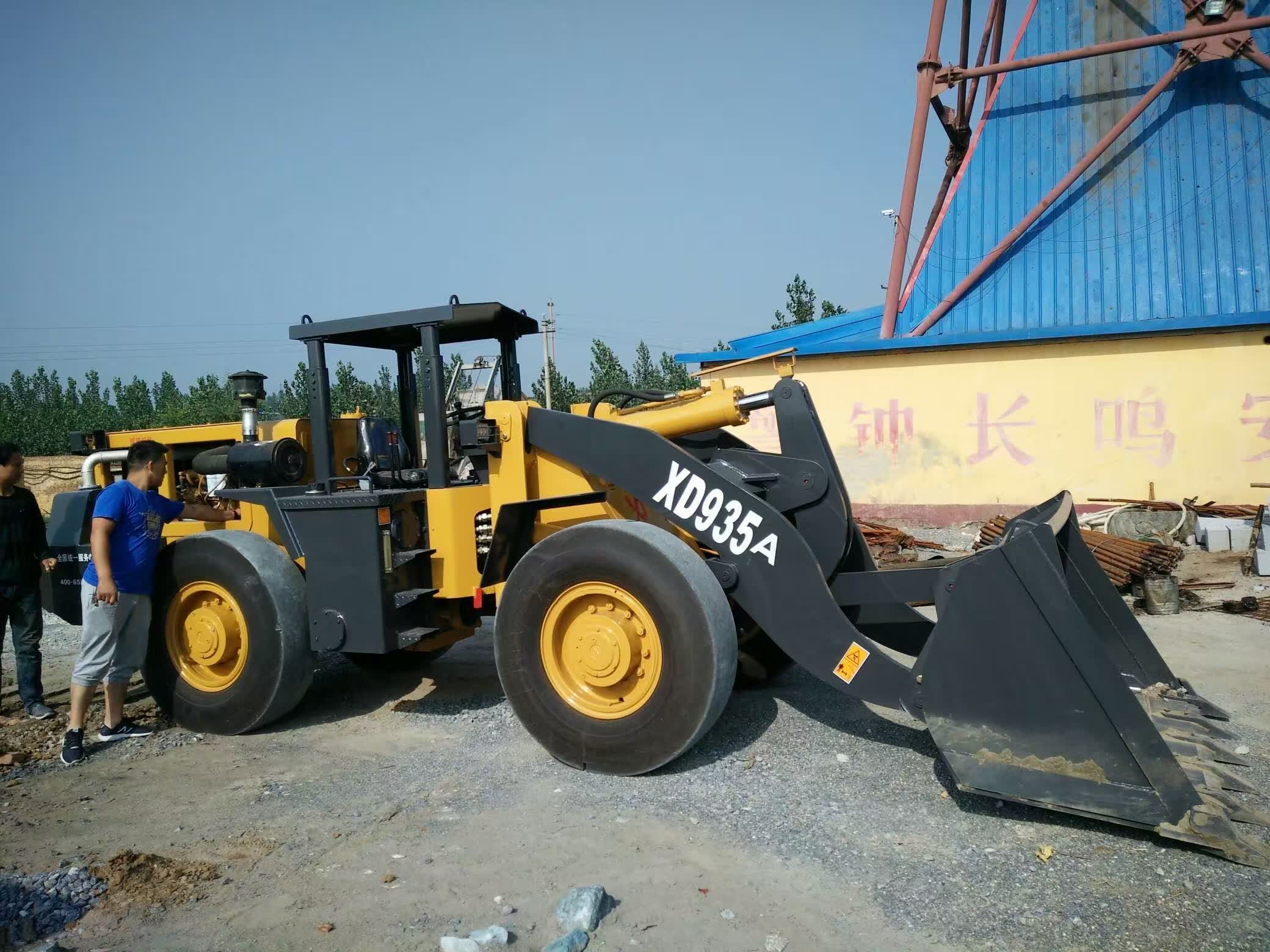

Underground wheel loader XD935 rated load 3.0ton with 1.9cbm bucket capacity

Product Categories
Shandong Katop Machinery Co.,Ltd.
Contact Now

Underground wheel loader XD935 rated load 3.0ton with 1.9cbm bucket capacity

  • 1
  • 2
  • 3

Brand Name : KATOP

Model Number : XD935

Certification : CE SGS ISO9001

Place of Origin : Shandong

MOQ : 1 unit

Supply Ability : 300units per month

Delivery Time : within 20 days

Packaging Details : 20GP container

bucket capacity : 1.9cbm

rated load : 3.0ton

engine : YUCHAI6110/CUMMINS 6BT5.9

engine power : 92/97kw

dimension : 6760*1900*2550mm

tire : 12.0-24

grade ability : 30%

optional : side seat;side dump ;narrow tire ;tire chains

Contact Now

XD930 underground wheel loader

Underground wheel loader XD935 rated load 3.0ton with 1.9cbm bucket capacity

  • YTO,YUCHAI or DEUTZ engine, YJ315 type torque converter, ZL428 gearbox
  • Special designed Engineering Machinery hub reduction axle, air over hydraulic brake system
  • Overall width≤1.9m, overall heiht≤2.5m, overall length≤6.6m
  • 12.00-24 wear-resistant and anti-puncture tire.
  • Standard with exhaust purification device.
  • Optional imported three way catalytic and protection chain for tires.
  • Model XD935
    Bucket caacity 1.7
    Rated load 3.0
    Weight 10
    Speed 0-35
    Forward I-II 7.0-12.5
    Forward III-IV 21-35
    Reverse I 14 II 25
    Length 6600
    Width 1900
    Height 2500
    Wheelbase 2700
    Wheel tread 1800
    Max.dumping height 2740
    Dumping distance 1070
    Engine Model YC6BJ25
    Rated power 92
    Tire type 12.00-24
  • Underground wheel loader XD935 rated load 3.0ton with 1.9cbm bucket capacity
