380 Mini Skid Steer Loader 200KG (Wheel type&Crawler type)

Product Categories

Shandong Katop Machinery Co.,Ltd.

Contact Now

Brand Name : Katop

Model Number : 380

Certification : CE,SGS, ISO9001:2008

Place of Origin : shandong ,china

MOQ : 1 unit

Payment Terms : T/T or L/C

Supply Ability : 800 units per year

Delivery Time : within 20days after receive deposit

Packaging Details : 20GP container

Dimension(Long * Breadth * High) : 2206*1160*1233mm

Rated Load : 200KG

Type : Skid Steer Loader

Moving Type : Wheel Loader

Engine Model : Briggs&Stratton Engine --23HP

Contact Now

XD380 Mini Skid Steer Loader Specification.

Item	Metric	Inch
Max working height(A)	2115 mm	83.3 inch
Max pin height (B)	1856 mm	73.1 inch
Max dump height(C)	1460 mm	57.5 inch
The highest point discharge distance(D)	388 mm	15.3 inch
Bucket swing angle(β)	55°	55°
Bucket unloading angle(γ)	30°	30°
Opening-closing angle(θ)	25°	25°
Angle of departure(α)	8°	8°
Total height (H)	1205 mm	47.4 inch
The height from the ground(F)	90 mm	3.5 inch
Wheelbase (G)	636 mm	25.0 inch
No bucket length(J)	1752 mm	69.0 inch
Total width (W)	1033 mm	40.7 inch
Bucket width (K)	980 mm	38.6 inch
Total length(L)(with bucket)	2206 mm	86.9 inch
Turning radius (R)	1307 mm	51.5 inch

Main performance parameters:

1. Payment Terms: 30%T/T deposit , the balance before shipment

2. Delivery Time : Within 15 days after receipt of 30% prepayment.

3. Packing : use iron frame &plywood package

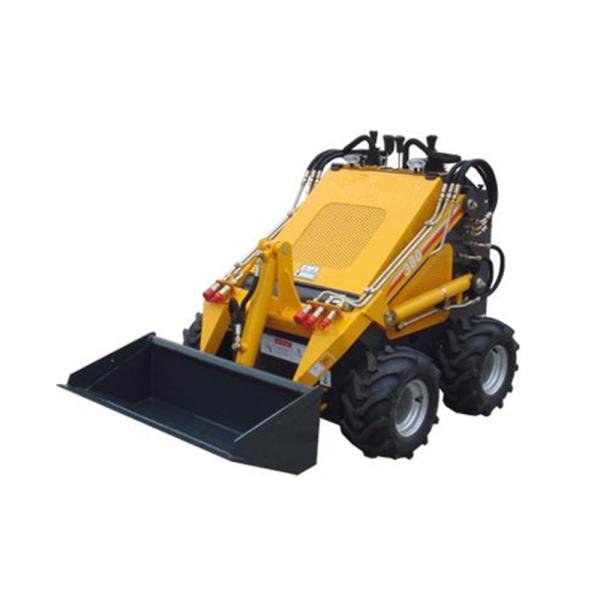

380 Mini Skid Steer Loader 200KG (Wheel type&Crawler type) Images
