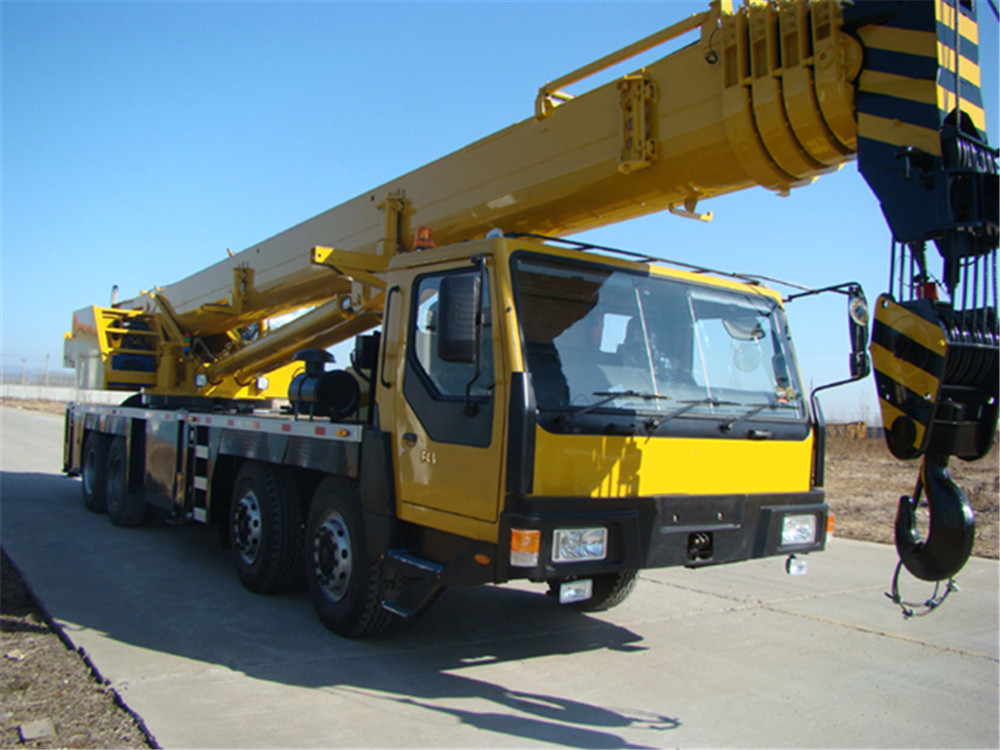

QLY40A 40Ton Truck Crane

Place of Origin : shandong ,china

Brand Name : Katop

Certification : CE,SGS, ISO9001:2008

Model Number : QLY40A

MOQ : 1 unit

Packaging Details : nude packing

Delivery Time : Shipped in 30 days after payment

Payment Terms : T/T or L/C

Supply Ability : 20 Set/Sets per Month

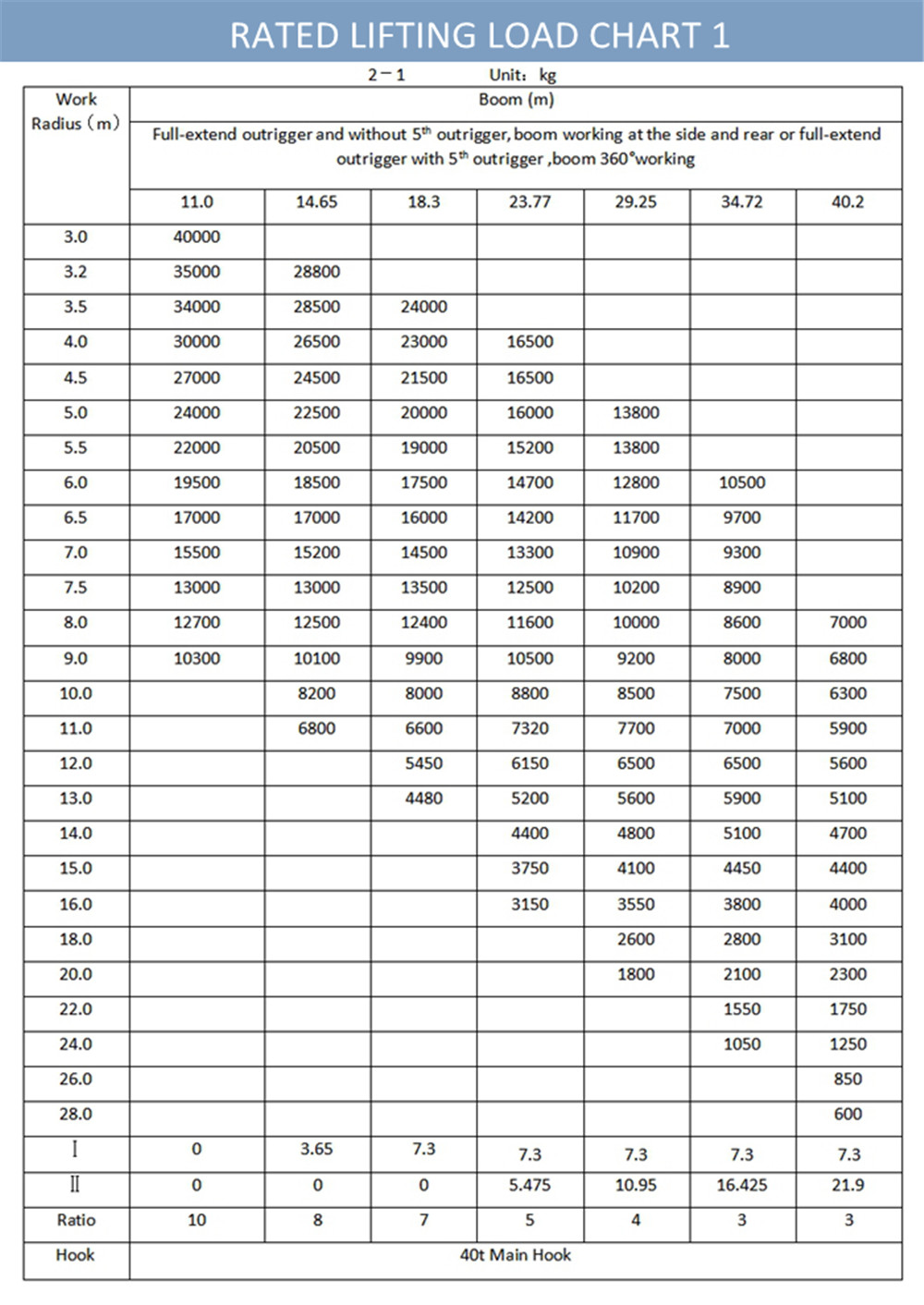

Rated Lifting Moment : 1215kN.m

Rated Loading Capacity : 40ton

Max. Lifting Load : 50ton

Max. Lifting Height : 56.6m

Span : 5330mm*6200mm

Application : Construction&Engnieer

Feature : Truck Crane

Overall dimensions : 14100*2500*3550mm

Total weight in travel : 37920kg

Engine model : WP10.336 (Cummins Engine Optional)

Engine Rated Power : 336HP/2200(r/min)

Max. travel speed : 75km/h

Max. grade ability : 30%
