KATOP 3.0ton CPCD30FR Diesel Forklift

Product Categories

Shandong Katop Machinery Co.,Ltd.

Contact Now

Name: KATOP 30ton CPCD30FR Diesel Forklift
Brand: KATOP
Price: 8100 USD

Brand Name : KATOP

Model Number : 30FR

Certification : CE SGS ISO

Place of Origin : Shandong

MOQ : 1 unit

Price : $8100-$8500

Supply Ability : 300units per month

Delivery Time : within 30days

Packaging Details : 5PCS/20’CNT; 10PCS/40’CNT

Load capacity : 3.0ton

Dimensions : 3800*1230*2095mm

Total weight : 4320kg

Engine model : 490BPG

Engine power : 39kw

Contact Now

KATOP CPCD30FR 3.0Ton Forklift

Main Characteristics

♦ Powerful engine

♦ Low center of gravity, small turning radius, more stable and reliable

♦ Comfortable seat for long-time operation

♦ Safe overhead guard

♦ Rear light for working in the dark

♦ Dual air filter

♦ Streamline balance weight

♦ Side shifter is optional

♦ Optional mast: 2-stage 3.3m/3.5m/4mmast; 3-stage4.5m/5m/5.5m/6m/7.3mmast.

♦ Optional engine: EURO II/III China engine; DEUTZ-DACHAI engine; ISUZU engine;

YANMAR engine.

CPCD30FR Specifications:

General		Brand	KATOP
	1	Model		CPCD30FR
	2	Rated capacity	kg	3000
	3	Load center	mm	500
	4	Power type		Diesel
	5	Transmission		Hydraulic
Dimensions	6	Lifting height	mm	3000
	7	Free lifting height	mm	80
	8	Turning radius	mm	2500
	9	Overall length	mm	3800
	10	Overall width	mm	1230
	11	Overall height (mast lowered)	mm	2095
	12	Overall height (mast raised)	mm	4080
	13	Overall height (overhead guard)	mm	2110
	14	Fork length	mm	1220
	15	Fork width	mm	125
	16	Fork thickness	mm	45
Performance	17	Max. driving speed (with/without load)	km/h	18/20
	18	Max. lifting speed (with load)	mm/s	400
	19	Max. traction (with/without load)	kn	15.5/10.5
	20	Gradeability (with/without load)	%	15/20
	21	Tilting angles(forward/backward)	°	6/12
	22	Service weight	kg	4320
Engine	23	Engine model		490BPG
	24	Power	kw	39
	25	Rated speed	rpm	2650
	26	Displacement	L	2.67
	27	No. of cylinder		4
Wheel	28	Front overhang	mm	465
	29	Wheel base	mm	1700
	30	Front tread	mm	1000
	31	Rear tread	mm	970
	32	Front tire		28x9-15
	33	Rear tire		6.50-10

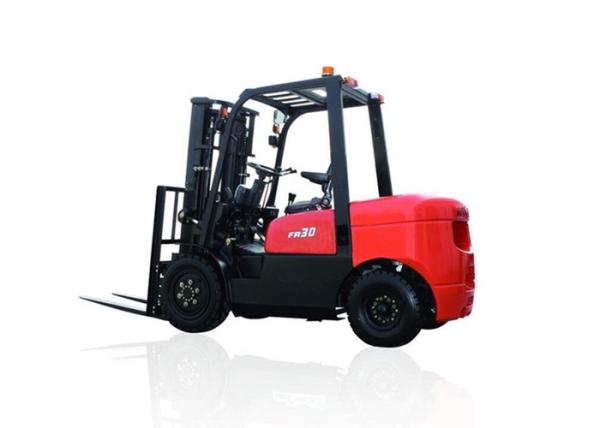

KATOP 3.0ton CPCD30FR Diesel Forklift Images
